TDA Power Packs

Standard Equipment:

• Fluid inlet strainer
• Air filter, regulator, lubricator gauge & pump on/off valve
• 6" dia (150mm) panel mtd pressure gauge
• Pressure release valve
• Fully assembled with all interconnecting adaptors & pipework
• Robust painted framework

Options:

• Stainless steel framework
• Heavy duty wheels
• Pressure isolation valve
• Stroke counting facilities, pneumatic or battery powered
• Offshore paint specification
• Option for ATEX-approved version

Nominal Dimensions:

• 24 x 25 5/8 x 29 1/2" high (610mm x 650mm x 750mm high)
• Approx Weight: 230lbs (105kgs)

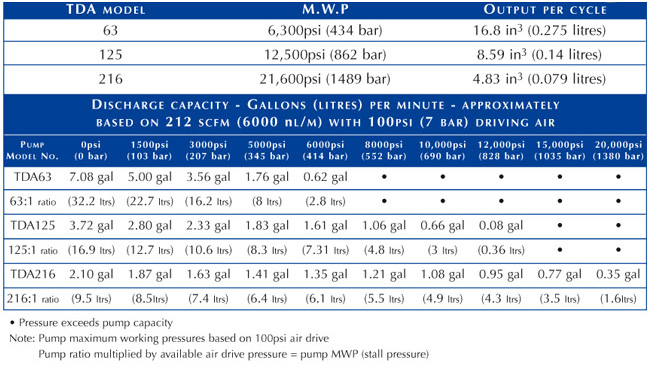

Performance Data
