SDT310 Small Type Platinum Thin Film Thermal Sensors
![SDT310-6](./images/SDT310-6.jpg)
Features
- T.C.R. is in accordance to JIS-DIN IEC standards
- The small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Products meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in glass.
![Dimensions and Construction](./images/charts/SDT310_1.png)

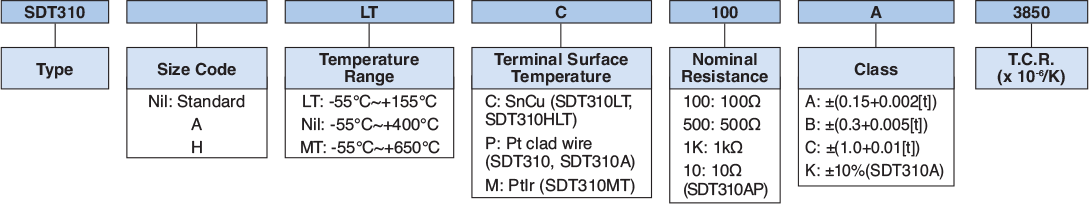

Ordering Information CHECK INVENTORY ORDER SAMPLES
![Ordering Information](./images/charts/SDT310_2.png)

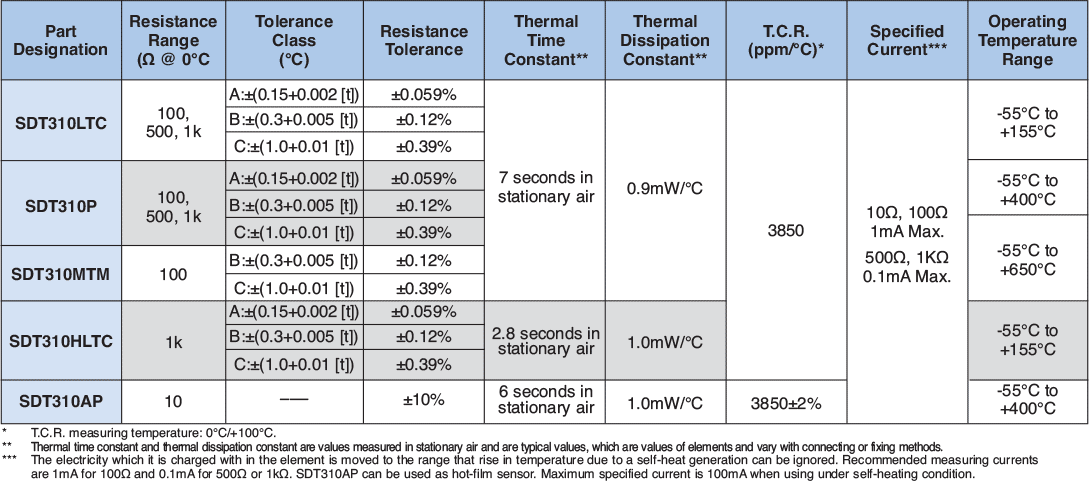

![Applications and Ratings](./images/charts/SDT310_3.png)
![Environmental Applications](./images/charts/SDT310_4.png)
![Environmental Applications](./images/charts/SDT310_5.png)
Last Updated: 11/21/2023
