Push Back Pallet Rack
High Density Cart-On-Rail Pallet Rack System
Ridg-U-Rak's Push Back Pallet Rack (Push-Bak) uses a dynamic cart-on-rail system in which deeper pallet loads automatically advance to the aisle when the front pallet load is retrieved
The ultimate in high density storage utilization and selectivity. Features jam-free cart-on-rail design.
Push back pallet rack systems offer similar storage density as drive-in pallet rack while improving selectivity and accessibility to a range of SKUs. Product stored in lanes rests on a system of carts-on-rails available in 2 to 6 pallets deep. From one aisle, pallets are stored by "pushing back" previously placed pallets with a new pallet on the next cart position. When the front pallet is retrieved, gravity causes the next pallet to move forward into a ready position. This "last-in, first-out" system (per lane) reduces picking time when a large number of picking faces are required.
Ridg-U-Rak's patented design features large coated wheels with sealed bearings. The linked cart design provides smooth operation in the pallet rack system.
Push back pallet rack systems provide a very desirable combination of high density storage and pallet accessibility. Ridg-U-Rak's Push-Bak™ storage density equals that of drive-in pallet rack systems, yet every lane can be accessed at all times. Any lane can be filled from the aisle without affecting any other adjacent lanes above or below.
Ridg-U-Rak manufactures complete push back pallet rack systems for the peace of mind that comes with single source responsibility. Ridg-U-Rak quality is in the entire system.
Standard Load: | up to 3,000 lbs. |
---|
Features:
Applications & Options:
Upright Frames
capacity charts
Frame Capacities
Vertical Beam |
|||||||||
---|---|---|---|---|---|---|---|---|---|
Spacing | UF-S31I | UF-S32I | UF-S33I | UF-R33I | UF-M33I | UF-Y33I | UF-H33I | UF-M43I | UF-H43I |
36" | 19,100 | 23,500 | 28,600 | 34,100 | 38,000 | 42,100 | 47,000 | 47,900 | 62,600 |
42" | 17,900 | 22,100 | 26,900 | 33,100 | 35,600 | 39,500 | 43,000 | 45,700 | 60,500 |
48" | 16,700 | 20,600 | 25,100 | 29,800 | 33,800 | 36,600 | 40,900 | 44,500 | 58,100 |
54" | 15,200 | 18,900 | 23,100 | 27,500 | 31,900 | 33,600 | 38,600 | 43,100 | 55,300 |
60" | 13,800 | 17,200 | 21,100 | 25,000 | 28,100 | 30,400 | 33,900 | 40,200 | 52,400 |
72" | 10,800 | 13,700 | 17,000 | 20,000 | 22,300 | 24,100 | 26,800 | 35,300 | 46,000 |
84" | 8,200 | 10,600 | 13,200 | 15,400 | 17,200 | 18,600 | 20,700 | 30,200 | 39,300 |
96" | 6,500 | 8,400 | 10,500 | 12,200 | 13,500 | 14,700 | 16,300 | 25,200 | 32,800 |
108" | 5,200 | 6,800 | 8,500 | 9,900 | 10,900 | 11,800 | 13,100 | 20,500 | 22,600 |
• The capacities shown in this table are for static load conditions only.
• The Frame Capacity Chart gives static load capacities based on the specified "Unsupported Length" of the columns (Vertical Beam Spacing).
WARNING: Due to the system-based design approach of the current RMI Specification, the use of static load capacities are no longer appropriate. Load ratings can only be provided through a system analysis which accounts for configuration of the system, static loading, seismic parameters, stability requirements and the interaction characteristics of the various system components. These capacity tables should only be used as a "starting point".
Frame Capacities
Vertical Beam |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Spacing | UF-S32C | UF-M32C | UF-H32C | UF-S33C | UF-R33C | UF-M33C | UF-Y33C | UF-H33C | UF-M43C | UF-H43C |
36" | 24,700 | 29.800 | 36,400 | 29,800 | 35,500 | 40,500 | 44,000 | 49,100 | 51,700 | 63,200 |
42" | 23,500 | 27,900 | 34,100 | 28,100 | 33,500 | 37,100 | 41,300 | 45,000 | 49,400 | 61,100 |
48" | 22,100 | 26,900 | 32,800 | 26,200 | 31,100 | 35,300 | 38,300 | 42,700 | 48,000 | 58,700 |
54" | 20,700 | 25,700 | 31,300 | 24,200 | 28,700 | 33,300 | 35,100 | 40,400 | 46,600 | 55,900 |
60" | 19.000 | 23,200 | 28,200 | 22,000 | 26,000 | 29,300 | 31,800 | 35,400 | 43,400 | 53,000 |
72" | 15.700 | 19,100 | 23,200 | 17,700 | 20,800 | 23,300 | 25,200 | 28,100 | 38,100 | 46,500 |
84" | 12.400 | 15,200 | 18,500 | 13,800 | 16,100 | 17,900 | 19,400 | 21,600 | 32,600 | 39,700 |
96" | 9.900 | 12,300 | 14,800 | 10,900 | 12,700 | 14,100 | 15,300 | 17,000 | 27,200 | 33,100 |
108" | 8.000 | 10,000 | 12,100 | 8,900 | 10,300 | 11,400 | 12,300 | 13,700 | 22,200 | 26,900 |
• The capacities shown in this table are for static load conditions only.
• The Frame Capacity Chart gives static load capacities based on the specified "Unsupported Length" of the columns (Vertical Beam Spacing).
WARNING: Due to the system-based design approach of the current RMI Specification, the use of static load capacities are no longer appropriate. Load ratings can only be provided through a system analysis which accounts for configuration of the system, static loading, seismic parameters, stability requirements and the interaction characteristics of the various system components. These capacity tables should only be used as a "starting point".
Frame capacity chart - Slotted Connection
Vertical Beam Spacing | SSF-335 |
---|---|
36" | 34,200 |
48" | 33,300 |
60" | 30,000 |
72" | 24,000 |
84" | 18,400 |
96" | 14,200 |
108" | 11,300 |
Frame capacity chart - Bolted Connection
Vertical Beam Spacing | SBF-335 | SBF-341 | SBF-445 |
---|---|---|---|
36" | 34,200 | 40,300 | 51,600 |
48" | 33,300 | 39,200 | 50,600 |
60" | 30,000 | 35,000 | 50,000 |
72" | 24,000 | 27,600 | 44,500 |
84" | 18,400 | 21,000 | 38,600 |
96" | 14,200 | 16,100 | 32,600 |
108" | 11,300 | 12,800 | 26,800 |
• The capacities shown in this table are for static load conditions only.
• The Frame Capacity Chart gives static load capacities based on the specified "Unsupported Length" of the columns (Vertical Beam Spacing).
WARNING: Due to the system-based design approach of the current RMI Specification, the use of static load capacities are no longer appropriate. Load ratings can only be provided through a system analysis which accounts for configuration of the system, static loading, seismic parameters, stability requirements and the interaction characteristics of the various system components. These capacity tables should only be used as a "starting point".
Horizontal Beams
capacity charts
Beam Capacities
Beam Profile |
Beam Lengths | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 84" | 92" | 96" | 102" | 108" | 120" | 144" | 156" | |
250 S | 5,700 | 4,530 | 3,130 | 2,300 | 1,910 | 1,750 | 1,550 | 1,380 | 1,120 | 770 | 660 |
300 S | 7,500 | 5,980 | 4,820 | 3,530 | 2,940 | 2,690 | 2,380 | 2,120 | 1,720 | 1,190 | 1,010 |
355 S | 9,760 | 7,770 | 6,460 | 5,330 | 4,440 | 4,070 | 3,600 | 3,210 | 2,590 | 1,790 | 1,520 |
410 L | 10,810 | 8,620 | 7,150 | 6,110 | 5,570 | 5,200 | 4,600 | 4,100 | 3,310 | 2,290 | 1,940 |
410 S | 12,000 | 9,780 | 8,120 | 6,930 | 6,320 | 5,830 | 5,160 | 4,600 | 3,710 | 2,570 | 2,180 |
465 S | 12,000 | 11,970 | 9,940 | 8,490 | 7,740 | 7,410 | 6,960 | 6,320 | 5,110 | 3,530 | 3,000 |
500 S | 12,000 | 12,000 | 11,170 | 9,540 | 8,700 | 8,330 | 7,830 | 7,380 | 6,140 | 4,250 | 3,610 |
550 S | 18,000 | 18,000 | 18,000 | 11,150 | 10,160 | 9,720 | 9,140 | 8,620 | 7,740 | 5,420 | 4,610 |
600 S | 18,000 | 18,000 | 18,000 | 12,850 | 11,710 | 11,210 | 10,540 | 9,940 | 8,920 | 6,790 | 5,770 |
650 S | 18,000 | 18,000 | 18,000 | 14,660 | 13,360 | 12,790 | 12,020 | 11,340 | 10,180 | 8,360 | 7,110 |
650 R | 18,000 | 18,000 | 18,000 | 18,000 | 15,160 | 14,520 | 13,640 | 12,870 | 11,550 | 9,370 | 7,970 |
• Capacities are based on uniformly distributed loads per pair of beams.
• Capacities listed are for non-seismic conditions. For seismic conditions consult with Ridg-U-Rak sales or engineering.
Beam Capacities
Beam Profile |
Beam Lengths | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 84" | 92" | 96" | 102" | 108" | 120" | 144" | 156" | |
250 S | 5,700 | 4,530 | 3,130 | 2,300 | 1,910 | 1,750 | 1,550 | 1,380 | 1,120 | 770 | 660 |
300 S | 7,500 | 5,980 | 4,820 | 3,530 | 2,940 | 2,690 | 2,380 | 2,120 | 1,720 | 1,190 | 1,010 |
355 S | 9,760* | 7,770 | 6,460 | 5,330 | 4,440 | 4,070 | 3,600 | 3,210 | 2,590 | 1,790 | 1,520 |
410 L | 10,810* | 8,620 | 7,150 | 6,110 | 5,570 | 5,200 | 4,600 | 4,100 | 3,310 | 2,290 | 1,940 |
410 S | 12,270* | 9,780* | 8,120 | 6,930 | 6,320 | 5,830 | 5,160 | 4,600 | 3,710 | 2,570 | 2,180 |
465 S | 15,020* | 11,970* | 9,940* | 8,490 | 7,740 | 7,410 | 6,960 | 6,320 | 5,110 | 3,530 | 3,000 |
500 S | 16,890* | 13,460* | 11,170* | 9,540* | 8,700 | 8,330 | 7,830 | 7,380 | 6,140 | 4,250 | 3,610 |
550 S | 19,720* | 15,710* | 13,050* | 11,150* | 10,160* | 9,720* | 9,140* | 8,620 | 7,740 | 5,420 | 4,610 |
600 S | 22,500* | 18,120* | 15,050* | 12,850* | 11,710* | 11,210* | 10,540* | 9,940* | 8,920 | 6,790 | 5,770 |
650 S | 22,500* | 20,670* | 17,160* | 14,660* | 13,360* | 12,790* | 12,020* | 11,340* | 10,180* | 8,360 | 7,110 |
650 R | 22,500* | 22,500* | 19,480* | 16,640* | 15,160* | 14,520* | 13,640* | 12,870* | 11,550* | 9,370* | 7,970 |
• Capacities marked with * indicate that the column connection capacity may be limited based on the hook option and/or frame model (see table below).
• Capacities listed are for non-seismic conditions. For seismic conditions consult with Ridg-U-Rak sales or engineering.
• Capacities are based on uniformly distributed loads per pair of beams.
• Capacities listed are for a 2-pallet wide condition.
• All beams over 114" in length should utilize at least one flanged, tek-screwed or lock-in cross bar located at mid length.
Beam Capacities - Slotted Connection
Beam Length | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | |
48" | 10,880 | 11,160 | 12,290 | 12,290 | 18,510 | 18,910 | ||||
54" | 9,350 | 9,920 | 10,640 | 10,930 | 15,860 | 16,810 | ||||
72" | 6,280 | 7,210 | 7,330 | 7,930 | 10,550 | 12,610 | 18,810 | |||
84" | 4,970 | 5,300 | 5,830 | 5,830 | 8,060 | 10,810 | 14,840 | 18,960 | ||
92" | 4,140 | 4,420 | 4,860 | 4,860 | 6,650 | 9,870 | 12,330 | 17,310 | ||
96" | 3,800 | 4,060 | 4,460 | 4,460 | 6,080 | 9,320 | 11,280 | 16,590 | ||
102" | 3,360 | 3,600 | 3,950 | 3,950 | 5,350 | 8,260 | 9,940 | 15,620 | 14,130 | |
108" | 2,990 | 3,210 | 3,530 | 3,530 | 4,750 | 7,370 | 8,830 | 14,750 | 12,520 | |
120" | 2,420 | 2,600 | 2,860 | 2,860 | 3,820 | 5,970 | 7,100 | 12,880 | 10,030 | |
132" | 2,000 | 2,150 | 2,360 | 2,360 | 3,140 | 4,930 | 5,840 | 10,640 | 8,220 | 17,640 |
144" | 1,670 | 1,810 | 1,990 | 1,990 | 2,630 | 4,150 | 4,880 | 8,940 | 6,870 | 15,640 |
156" | 1,430 | 1,540 | 1,690 | 1,690 | 2,230 | 3,530 | 4,150 | 7,620 | 5,820 | 13,330 |
180" | 1,070 | 1,160 | 1,270 | 1,270 | 1,670 | 2,660 | 3,100 | 5,730 | 4,340 | 10,010 |
Note: Beams must be secured by beam locks against accidental upward forces. All capacities are per pair of beams based on uniformly distributed loads. Capacities are based on current RMI specifications.
Beam Capacities - Bolted Connection
Beam Length | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | |
48" | 10,880 | 11,160 | 12,290 | 12,290 | 18,510 | 18,910 | ||||
54" | 9,350 | 9,920 | 10,640 | 10,930 | 15,860 | 16,810 | ||||
72" | 6,280 | 7,210 | 7,330 | 7,930 | 10,550 | 12,610 | 18,810 | |||
84" | 4,970 | 5,300 | 5,830 | 5,830 | 8,060 | 10,810 | 14,840 | 18,960 | ||
92" | 4,140 | 4,420 | 4,860 | 4,860 | 6,650 | 9,870 | 12,330 | 17,310 | ||
96" | 3,800 | 4,060 | 4,460 | 4,460 | 6,080 | 9,320 | 11,280 | 16,590 | ||
102" | 3,360 | 3,600 | 3,950 | 3,950 | 5,350 | 8,260 | 9,940 | 15,620 | 14,130 | |
108" | 2,990 | 3,210 | 3,530 | 3,530 | 4,750 | 7,370 | 8,830 | 14,750 | 12,520 | |
120" | 2,420 | 2,600 | 2,860 | 2,860 | 3,820 | 5,970 | 7,100 | 12,880 | 10,030 | |
132" | 2,000 | 2,150 | 2,360 | 2,360 | 3,140 | 4,930 | 5,840 | 10,640 | 8,220 | 17,640 |
144" | 1,670 | 1,810 | 1,990 | 1,990 | 2,630 | 4,150 | 4,880 | 8,940 | 6,870 | 15,640 |
156" | 1,430 | 1,540 | 1,690 | 1,690 | 2,230 | 3,530 | 4,150 | 7,620 | 5,820 | 13,330 |
180" | 1,070 | 1,160 | 1,270 | 1,270 | 1,670 | 2,660 | 3,100 | 5,730 | 4,340 | 10,010 |
Note: All capacities are per pair of beams based on uniformly distributed loads. Capacities are based on current RMI specifications.
Options (Frame & Beam)
Must be specified at the time of manufacturing
Accessories
Do you need Rack now?
Find a location near you.

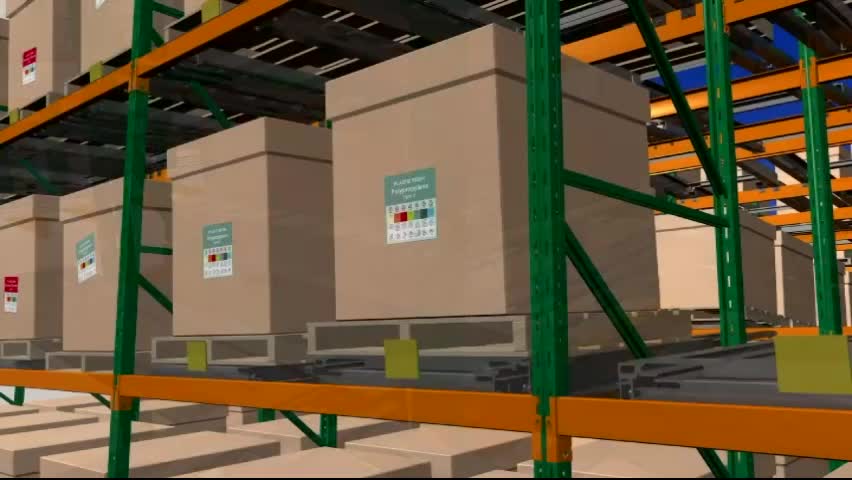

Push Back Rack - Virtual Showroom
Push back pallet rack systems store pallets of the same product on a system of carts-on-rails in lanes two to five positions deep. Pallets are loaded by "pushing back" previously placed pallets, setting the new pallet on the next cart position. Similarly, as a pallet is retrieved, the next pallet rolls forward to the aisle. Push-Back high density storage offers increased selectivity, as every lane can be accessed from the aisle without affecting the lanes above or below.
