Very Narrow Aisle Rack


In Very Narrow Aisle (VNA) Pallet Rack Systems, the space separating parallel rack units is greatly reduced, and pallets are placed and retrieved using a side loading fork truck. This minimizes the size of the aisles between rows of racks and can reduce the aisle space by around 40%. These pallet rack systems are available in original slotted or tear drop style columns and can be used at heights of up to 40 feet.
Provides higher density with 100% selectivity. Uses lift trucks designed to work in narrow aisles
Advances in fork lift trucks that can operate in aisles less than five feet wide have made VNA storage racks possible. The pallet rack systems provide a significant reduction in floor space and generally reduce costs of warehousing.
Pallets in very narrow aisle systems are 100% selective. With VNA racking, access to stock is uncompromised and the amount of product stored in the warehouse is maximized. It is an effective method of increasing pallet storage within a given area.
Columns & Beams: | Roll-formed or structural |
---|
Features:
Applications & Options:

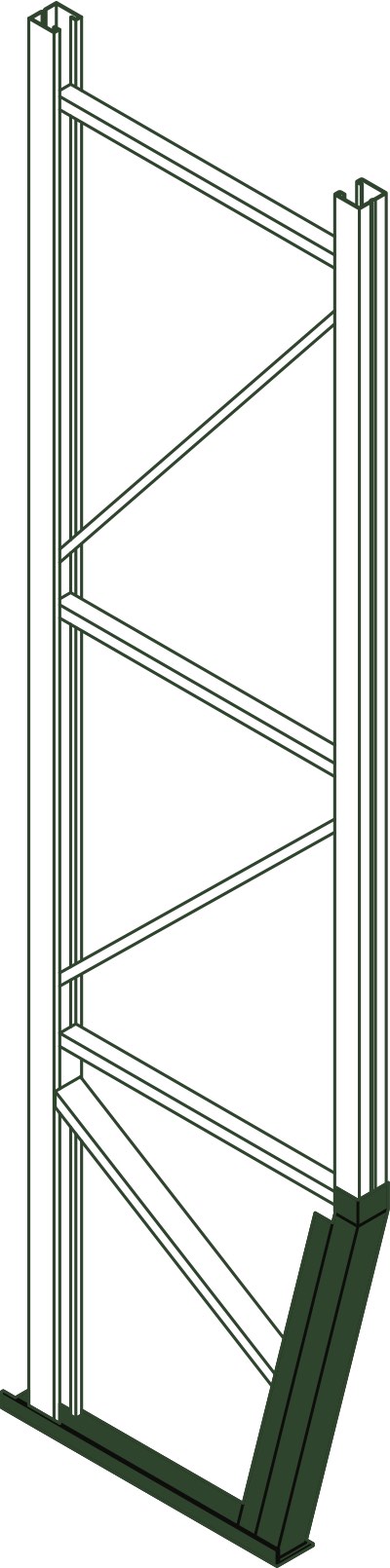

Upright Frames
capacity charts
Frame Capacities
Vertical Beam |
![]() |
![]() |
![]() |
![]() |
|||||
---|---|---|---|---|---|---|---|---|---|
Spacing | UF-S31I | UF-S32I | UF-S33I | UF-R33I | UF-M33I | UF-Y33I | UF-H33I | UF-M43I | UF-H43I |
36" | 19,100 | 23,500 | 28,600 | 34,100 | 38,800 | 42,100 | 47,000 | 47,900 | 62,600 |
42" | 17,900 | 22,100 | 26,900 | 33,100 | 35,600 | 39,500 | 43,000 | 45,700 | 60,500 |
48" | 16,700 | 20,600 | 25,100 | 29,800 | 33,800 | 36,600 | 40,900 | 44,500 | 58,100 |
54" | 15,200 | 18,900 | 23,100 | 27,500 | 31,900 | 33,600 | 38,600 | 43,100 | 55,300 |
60" | 13,800 | 17,200 | 21,100 | 25,000 | 28,100 | 30,400 | 33,900 | 40,200 | 52,400 |
72" | 10,800 | 13,700 | 17,000 | 20,000 | 22,300 | 24,100 | 26,800 | 35,300 | 46,000 |
84" | 8,200 | 10,600 | 13,200 | 15,400 | 17,200 | 18,600 | 20,700 | 30,200 | 39,300 |
96" | 6,500 | 8,400 | 10,500 | 12,200 | 13,500 | 14,700 | 16,300 | 25,200 | 32,800 |
108" | 5,200 | 6,800 | 8,500 | 9,900 | 10,900 | 11,800 | 13,100 | 20,500 | 26,600 |
Consult with factory for vertical beam-to-beam spacings greater than 108"
• The Frame Capacity Chart gives allowable loads based on the specified "Unsupported Length" of the columns.
• Values shown are in full compliance with the current RMI Specifications.
• The loads on upright frames accumulate from top to bottom, therefore, the unsupported length and the column load below each beam level should be checked to determine the worst-case scenario.
• The capacities shown in this table are for static load conditions only.
• For other special conditions such as seismic or wind loadings, consult with Ridg-U-Rak sales.
Frame Capacities
Vertical Beam |
![]() |
![]() |
![]() |
|||||||
---|---|---|---|---|---|---|---|---|---|---|
Spacing | UF-S32C | UF-M32C | UF-H32C | UF-S33C | UF-R33C | UF-M33C | UF-Y33C | UF-H33C | UF-M43C | UF-H43C |
36" | 24,700 | 29,800 | 36,400 | 29,800 | 35,500 | 40,500 | 44,000 | 49,100 | 51,700 | 63,200 |
42" | 23,500 | 27,900 | 34,100 | 28,100 | 33,500 | 37,100 | 41,300 | 45,000 | 49,400 | 61,100 |
48" | 22,100 | 26,900 | 32,800 | 26,200 | 31,100 | 35,300 | 38,300 | 42,700 | 48,000 | 58,700 |
54" | 20,700 | 25,700 | 31,300 | 24,200 | 28,700 | 33,300 | 35,100 | 40,400 | 46,600 | 55,900 |
60" | 19,000 | 23,200 | 28,200 | 22,000 | 26,000 | 29,300 | 31,800 | 35,400 | 43,400 | 53,000 |
72" | 15,700 | 19,100 | 23,200 | 17,700 | 20,800 | 23,300 | 25,200 | 28,100 | 38,100 | 46,500 |
84" | 12,400 | 15,200 | 18,500 | 13,800 | 16,100 | 17,900 | 19,400 | 21,600 | 32,600 | 39,700 |
96" | 9,900 | 12,300 | 14,800 | 10,900 | 12,700 | 14,100 | 15,300 | 17,000 | 27,200 | 33,100 |
108" | 8,000 | 10,000 | 12,100 | 8,900 | 10,300 | 11,400 | 12,300 | 13,700 | 22,200 | 26,900 |
Consult with factory for vertical beam-to-beam spacings greater than 108"
• The Frame Capacity Chart gives allowable loads based on the specified "Unsupported Length" of the columns.
• Values shown are in full compliance with the current RMI Specifications.
• The loads on upright frames accumulate from top to bottom, therefore, the unsupported length and the column load below each beam level should be checked to determine the worst-case scenario.
• The capacities shown in this table are for static load conditions only.
• For other special conditions such as seismic or wind loadings, consult with Ridg-U-Rak sales.
Frame capacity chart - Slotted Connection
Vertical Beam Spacing | SSF-335 |
---|---|
36" | 34,200 |
48" | 33,300 |
60" | 30,000 |
72" | 24,000 |
84" | 18,400 |
96" | 14,200 |
108" | 11,300 |
Frame capacity chart - Bolted Connection
Vertical Beam Spacing | SBF-335 | SBF-341 | SBF-445 |
---|---|---|---|
36" | 34,200 | 40,300 | 51,600 |
48" | 33,300 | 39,200 | 50,600 |
60" | 30,000 | 35,000 | 50,000 |
72" | 24,000 | 27,600 | 44,500 |
84" | 18,400 | 21,000 | 38,600 |
96" | 14,200 | 16,100 | 32,600 |
108" | 11,300 | 12,800 | 26,800 |
Horizontal Beams
capacity charts
Beam Capacities

Beam Profile |
Beam Lengths | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 84" | 92" | 96" | 102" | 108" | 120" | 144" | 156" | |
250 S | 5,700 | 4,530 | 3,130 | 2,300 | 1,910 | 1,750 | 1,550 | 1,380 | 1,120 | 770 | 660 |
300 S | 7,500 | 5,980 | 4,820 | 3,530 | 2,940 | 2,690 | 2,380 | 2,120 | 1,720 | 1,190 | 1,010 |
355 S | 9,760 | 7,770 | 6,460 | 5,330 | 4,440 | 4,070 | 3,600 | 3,210 | 2,590 | 1,790 | 1,520 |
410 L | 10,810 | 8,620 | 7,150 | 6,110 | 5,570 | 5,200 | 4,600 | 4,100 | 3,310 | 2,290 | 1,940 |
410 S | 12,000 | 9,780 | 8,120 | 6,930 | 6,320 | 5,830 | 5,160 | 4,600 | 3,710 | 2,570 | 2,180 |
465 S | 12,000 | 11,970 | 9,940 | 8,490 | 7,740 | 7,410 | 6,960 | 6,320 | 5,110 | 3,530 | 3,000 |
500 S | 12,000 | 12,000 | 11,170 | 9,540 | 8,700 | 8,330 | 7,830 | 7,380 | 6,140 | 4,250 | 3,610 |
550 S | 18,000 | 18,000 | 18,000 | 11,150 | 10,160 | 9,720 | 9,140 | 8,620 | 7,740 | 5,420 | 4,610 |
600 S | 18,000 | 18,000 | 18,000 | 12,850 | 11,710 | 11,210 | 10,540 | 9,940 | 8,920 | 6,790 | 5,770 |
650 S | 18,000 | 18,000 | 18,000 | 14,660 | 13,360 | 12,790 | 12,020 | 11,340 | 10,180 | 8,360 | 7,110 |
650 R | 18,000 | 18,000 | 18,000 | 18,000 | 15,160 | 14,520 | 13,640 | 12,870 | 11,550 | 9,370 | 7,970 |
• Capacities are based on uniformly distributed loads per pair of beams.
• Capacities listed are for non-seismic conditions. For seismic conditions consult with Ridg-U-Rak sales or engineering.
Beam Capacities

Beam Profile |
Beam Lengths | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 84" | 92" | 96" | 102" | 108" | 120" | 144" | 156" | |
250 S | 5,700 | 4,530 | 3,130 | 2,300 | 1,910 | 1,750 | 1,550 | 1,380 | 1,120 | 770 | 660 |
300 S | 7,500 | 5,980 | 4,820 | 3,530 | 2,940 | 2,690 | 2,380 | 2,120 | 1,720 | 1,190 | 1,010 |
355 S | 9,760* | 7,770 | 6,460 | 5,330 | 4,440 | 4,070 | 3,600 | 3,210 | 2,590 | 1,790 | 1,520 |
410 L | 10,810* | 8,620 | 7,150 | 6,110 | 5,570 | 5,200 | 4,600 | 4,100 | 3,310 | 2,290 | 1,940 |
410 S | 12,270* | 9,780* | 8,120 | 6,930 | 6,320 | 5,830 | 5,160 | 4,600 | 3,710 | 2,570 | 2,180 |
465 S | 15,020* | 11,970* | 9,940* | 8,490 | 7,740 | 7,410 | 6,960 | 6,320 | 5,110 | 3,530 | 3,000 |
500 S | 16,890* | 13,460* | 11,170* | 9,540* | 8,700 | 8,330 | 7,830 | 7,380 | 6,140 | 4,250 | 3,610 |
550 S | 19,720* | 15,710* | 13,050* | 11,150* | 10,160* | 9,720* | 9,140* | 8,620 | 7,740 | 5,420 | 4,610 |
600 S | 22,500* | 18,120* | 15,050* | 12,850* | 11,710* | 11,210* | 10,540* | 9,940* | 8,920 | 6,790 | 5,770 |
650 S | 22,500* | 20,670* | 17,160* | 14,660* | 13,360* | 12,790* | 12,020* | 11,340* | 10,180* | 8,360 | 7,110 |
650 R | 22,500* | 22,500* | 19,480* | 16,640* | 15,160* | 14,520* | 13,640* | 12,870* | 11,550* | 9,370* | 7,970 |

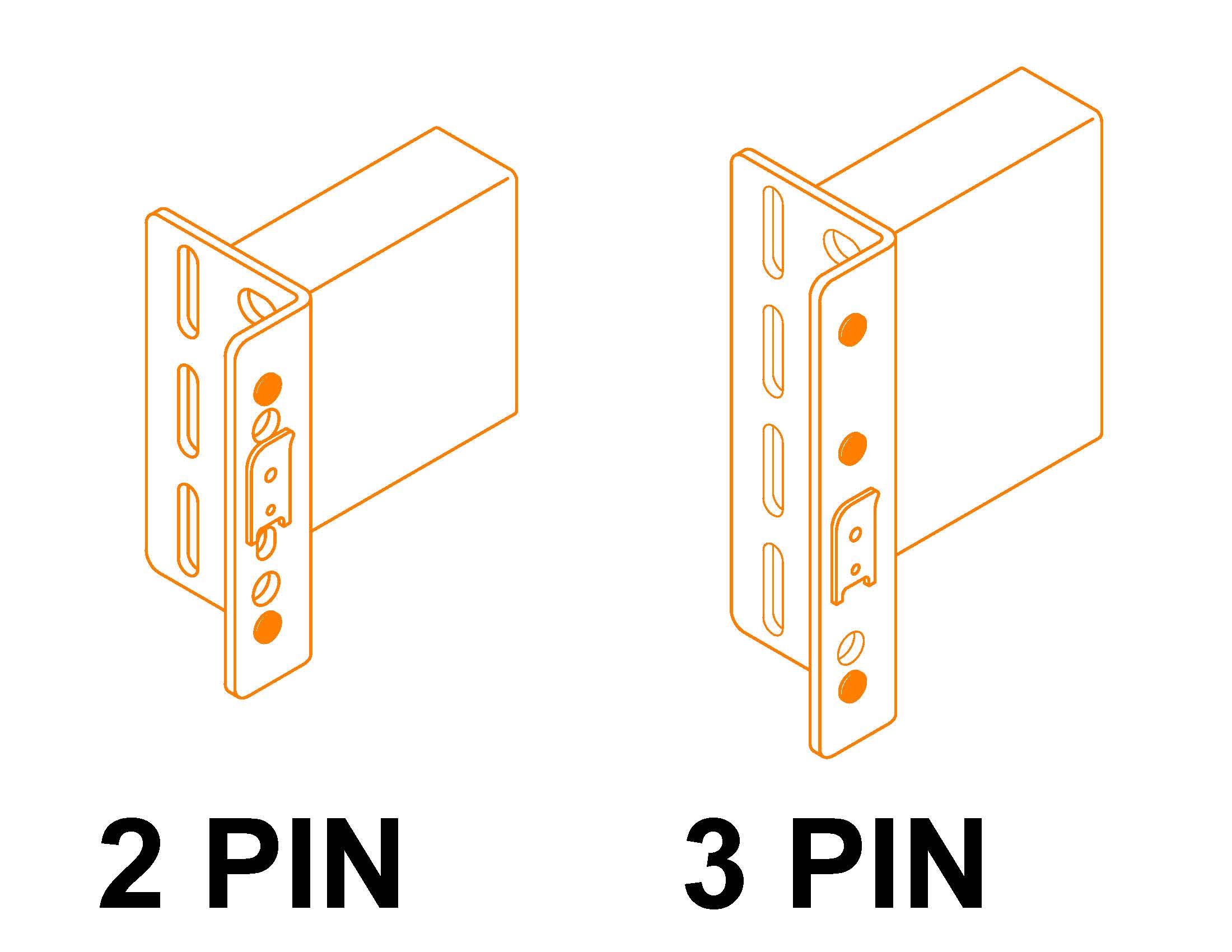

• Capacities marked with * indicate that the column connection capacity may be limited based on the hook option and/or frame model (see table below).
• Capacities listed are for non-seismic conditions. For seismic conditions consult with Ridg-U-Rak sales or engineering.
• Capacities are based on uniformly distributed loads per pair of beams.
• Capacities listed are for a 2-pallet wide condition.
• All beams over 114" in length should utilize at least one flanged, tek-screwed or lock-in cross bar located at mid length.
Beam Capacities - Slotted Connection

Beam Length | ![]() |
![]() |
![]() |
![]() |
![]() |
|||||
---|---|---|---|---|---|---|---|---|---|---|
Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | |
48" | 10,880 | 11,160 | 12,290 | 12,290 | 18,510 | 18,910 | ||||
54" | 9,350 | 9,920 | 10,640 | 10,930 | 15,860 | 16,810 | ||||
72" | 6,280 | 7,210 | 7,330 | 7,930 | 10,550 | 12,610 | 18,810 | |||
84" | 4,970 | 5,300 | 5,830 | 5,830 | 8,060 | 10,810 | 14,840 | 18,960 | ||
92" | 4,140 | 4,420 | 4,860 | 4,860 | 6,650 | 9,870 | 12,330 | 17,310 | ||
96" | 3,800 | 4,060 | 4,460 | 4,460 | 6,080 | 9,320 | 11,280 | 16,590 | ||
102" | 3,360 | 3,600 | 3,950 | 3,950 | 5,350 | 8,260 | 9,940 | 15,620 | 14,130 | |
108" | 2,990 | 3,210 | 3,530 | 3,530 | 4,750 | 7,370 | 8,830 | 14,750 | 12,520 | |
120" | 2,420 | 2,600 | 2,860 | 2,860 | 3,820 | 5,970 | 7,100 | 12,880 | 10,030 | |
132" | 2,000 | 2,150 | 2,360 | 2,360 | 3,140 | 4,930 | 5,840 | 10,640 | 8,220 | 17,640 |
144" | 1,670 | 1,810 | 1,990 | 1,990 | 2,630 | 4,150 | 4,880 | 8,940 | 6,870 | 15,640 |
156" | 1,430 | 1,540 | 1,690 | 1,690 | 2,230 | 3,530 | 4,150 | 7,620 | 5,820 | 13,330 |
180" | 1,070 | 1,160 | 1,270 | 1,270 | 1,670 | 2,660 | 3,100 | 5,730 | 4,340 | 10,010 |
Note: Beams must be secured by beam locks against accidental upward forces. All capacities are per pair of beams based on uniformly distributed loads. Capacities are based on current RMI specifications.
Beam Capacities - Bolted Connection

Beam Length | ![]() |
![]() |
![]() |
![]() |
![]() |
|||||
---|---|---|---|---|---|---|---|---|---|---|
Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | Un-braced Cap/pr | Braced Cap/pr | |
48" | 10,880 | 11,160 | 12,290 | 12,290 | 18,510 | 18,910 | ||||
54" | 9,350 | 9,920 | 10,640 | 10,930 | 15,860 | 16,810 | ||||
72" | 6,280 | 7,210 | 7,330 | 7,930 | 10,550 | 12,610 | 18,810 | |||
84" | 4,970 | 5,300 | 5,830 | 5,830 | 8,060 | 10,810 | 14,840 | 18,960 | ||
92" | 4,140 | 4,420 | 4,860 | 4,860 | 6,650 | 9,870 | 12,330 | 17,310 | ||
96" | 3,800 | 4,060 | 4,460 | 4,460 | 6,080 | 9,320 | 11,280 | 16,590 | ||
102" | 3,360 | 3,600 | 3,950 | 3,950 | 5,350 | 8,260 | 9,940 | 15,620 | 14,130 | |
108" | 2,990 | 3,210 | 3,530 | 3,530 | 4,750 | 7,370 | 8,830 | 14,750 | 12,520 | |
120" | 2,420 | 2,600 | 2,860 | 2,860 | 3,820 | 5,970 | 7,100 | 12,880 | 10,030 | |
132" | 2,000 | 2,150 | 2,360 | 2,360 | 3,140 | 4,930 | 5,840 | 10,640 | 8,220 | 17,640 |
144" | 1,670 | 1,810 | 1,990 | 1,990 | 2,630 | 4,150 | 4,880 | 8,940 | 6,870 | 15,640 |
156" | 1,430 | 1,540 | 1,690 | 1,690 | 2,230 | 3,530 | 4,150 | 7,620 | 5,820 | 13,330 |
180" | 1,070 | 1,160 | 1,270 | 1,270 | 1,670 | 2,660 | 3,100 | 5,730 | 4,340 | 10,010 |
Note: All capacities are per pair of beams based on uniformly
distributed loads. Capacities are based on current
RMI specifications.
Options (Frame & Beam)
Must be specified at the time of manufacturing
