The 10mm and 15mm direct acting and pilot valves are a further evolution of Solenoid Solution's solenoid valve offering manufactured for the pneumatic automation and instrumentation market.
The 10mm and 15mm solenoid valves are designed for those air and inert gas applications where high performance in the areas of pressure and flow are required together with small size, very low power consumption and high reliability even at high cycling rates. And all Solenoid Solutions 10mm and 15mm solenoid valves are suitable for oxygen service.
The 10mm and 15mm solenoid valves are made with an encapsulated coil joined to a valve body. The assembly is non-detachable.
All solenoid valves feature...
- Heat-resistant bobbin molded with 30% glass filled Polyethylene
- Class H copper wire
- Encapsulation with high quality, specially designed glass filled polypropylene
- Stainless steel plunger guide, plunger and valve core
The valve assembly is designed for more than 50 million cycles and is normally provided with Viton seals and a monostable manual override. Other seal materials are available as required. The valve is delivered with a specially designed seal and screws for assembly to a valve base or manifold.
The coil is designed and manufactured in accordance with EN60204.1 and is suitable for industrial ambient conditions. For use in different ambient conditions with high humidity, contact Solenoid Solutions. The coil is in conformity with 94/9 EC ATEX for electrical apparatus of group II, Category 3. All valve components are made from UL recognized materials.
Different electrical connections are available. All of the pneumatic connections are located on the valve body and all Solenoid Solutions 10mm and 15mm pilot valves are suitable for installation on sub-bases or in multi-valve manifolds with common inlet pressure and exhaust ports.
Technical Data
|
10mm |
15mm |
|
|---|---|---|
Valve Function |
3/2 NC |
3/2 NC-3/2 NO - 2/2 NC - 2/2 NO - 3/2 UNI |
Media |
air |
air, dried or lubricated |
Orifice Size |
0.8 mm |
0.8/11.1/1.5 mm |
Pressure |
0 115 PSIG |
0 to 145 PSIG |
Cv Flow Factor |
0.23 |
0./0.32 to 0.64 |
Response Time |
10 ms |
5÷15 ms |
Cycling Time |
2400 cpm |
2000 cpm |
Lifetime Expectancy |
50 million cycles |
50 million cycles |
Manual Override |
monostable |
monostable |
Mounting |
in any position |
in any position |
Fixing |
N°2 screws M 1.6 x 14 |
N°2 screws M3 X 18 |
Coil technical data
Duty Cycle |
ED 100% |
ED 100% |
Temperature |
ambient -5°C to +50°C |
ambient -10°C to +50°C |
Power |
1W |
1 to 2.5W (DC) 3VA (AC) |
Voltage |
12-24V DC |
12-24 VDC 24-115-230 VAC |
Voltage Variation |
±10% |
±10% |
Insulation Class |
F |
F |
Degrees of Protection |
IP 40 (according to EN 60529) |
IP 65 (according to EN 60529) |
Electrical Connection |
connector |
Amp 2.8 X 0.5 - DIN C - Flying leads - M12 |
Coil Construction |
according to EN 60204.1 and VDE 0580 |
according to EN 60204.1 and VDE 0580 |
Materials
Valve Body |
PBT (Polybutylene terephthalate) |
PPS (Polyethaline sulfide) |
Seals |
Viton (other materials on request) |
Viton or NBR - FKM - FKM Low temp. (-40°) |
Cores |
Stainless Steel |
Stainless Steel |
Springs |
Stainless Steel |
Stainless Steel |
Coil |
PET (polyethylene terephthalatel) |
Glass reinforced Polyamide 6.6 |
Copper Wire |
Class H 180°C IEC 60317-51 |
Class H 200°C IEC 60317-13 |
Selection Chart
15-1 00-A 1 B
Part Number
Options
15 |
2 |
00 |
A |
1 |
B |
| Product Family | Seal Material | Function & Specification | Electrical Connection | Electrical Voltage | Options |
| 10mm 15mm |
1 - Buna * Standard |
00 01 02 03 04 05 06 07 08 09 10 11 12 |
10mm
|
1 = 12VDC (Turn & Lock) 2 = 24VDC 3 = 24VAC 50/60 Hz 4 = 11VAC 50/60 Hz 5 = 220VAC 50/60 Hz 6 = 230VAC 50/60 Hz |
Manual Override B = Bistable N = No Override Coil Orientation S = Same as Ports Other Options Contact Factory |
Base Models |
Function and Specifications |
|||||||||||
| Nominal Size |
Buna Product Family Special Order |
Viton Product Family STANDARD |
LT Viton Product Family | Function | Orifice Port 1in./mm | Orifice Port 3in./mm | CV Factor | Flow in CFM Port 1 to Port 2 at 87 PSIG | Min. Pressure PSIG | Max. Pressure PSIG | Power Wattage | Power VA |
10mm |
10-1 00 | NA | NA | 2/2 NC | 0.03/0.8 | - | 0.013 | 4.6 | 0 | 116 | 1 | NA |
15mm |
15-1 00 | 15-2 00 | 15-3 00 | 2/2 NC | 0.03/0.8 | - | 0.019 | 6.4 | 0 | 116 | 1 | 3 |
| 15-1 01 | 15-2 01 | 15-3 01 | 2/2 NC | 0.04/1.1 | - | 0.028 | 9.9 | 0 | 145 | 2.5 | 3 | |
| 15-1 02 | 15-2 02 | 15-3 02 | 2/2 NC | 0.06-1.5 | - | 0.037 | 12.7 | 0 | 87 | 2.5 | 3 | |
| 15-1 03 | 15-2 03 | 15-3 03 | 2/2 NO | 0.04/1.0 | - | 0.027 | 9.2 | 0 | 145 | 1 | 3 | |
| 15-1 04 | 15-2 04 | 15-3 04 | 2/2 NO | 0.06/1.5 | - | 0.037 | 12.7 | 0 | 145 | 2.5 | 3 | |
| 15-1 05 | 15-2 05 | 15-3 05 | 3/2 NC | 0.03/0.8 | 0.04/1.0 | 0.019 | 6.4 | 0 | 116 | 1 | 3 | |
| 15-1 06 | 15-2 06 | 15-3 06 | 3/2 NC | 0.04/1.1 | 0.06/1.5 | 0.028 | 9.9 | 0 | 145 | 2.5 | 3 | |
| 15-1 07 | 15-2 07 | 15-3 07 | 3/2 NC | 0.06/1.5 | 0.06/1.5 | 0.037 | 12.7 | 0 | 87 | 2.5 | 3 | |
| 15-1 08 | 15-2 08 | 15-3 08 | 3/2 NC | 0.03/0.8 | 0.04/1.0 | 0.019 | 6.4 | 0 | 232 | 2.5 | 3 | |
| 15-1 09 | 15-2 09 | 15-3 09 | 3/2 NC | 0.04/1.1 | 0.06/1.5 | 0.028 | 9.9 | 29 | 109 | 1 | 3 | |
| 15-1 10 | 15-2 10 | 15-3 10 | 3/2 NO | 0.04/1.0 | 0.04/1.1 | 0.027 | 8.1 | 0 | 102 | 2.5 | 3 | |
| 15-1 11 | 15-2 11 | 15-3 11 | 3/2 NO | 0.06/1.5 | 0.06/1.5 | 0.025 | 12.7 | 0 | 51 | 2.5 | 3 | |
| 15-1 12 | 15-2 12 | 15-3 12 | 3/2 UNI | 0.03/0.8 | 0.04/1.0 | 0.067 | 6.4/8.1 | 29 | 145 | 2.5 | 3 | |
SubMiniature Pilot Valve Connection Options

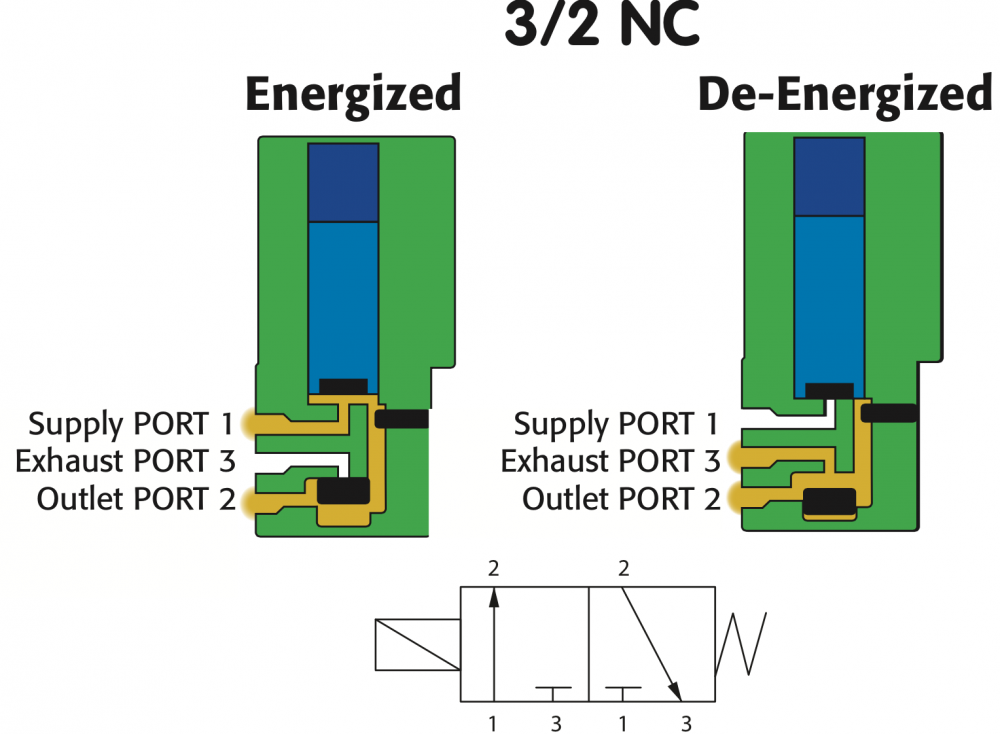

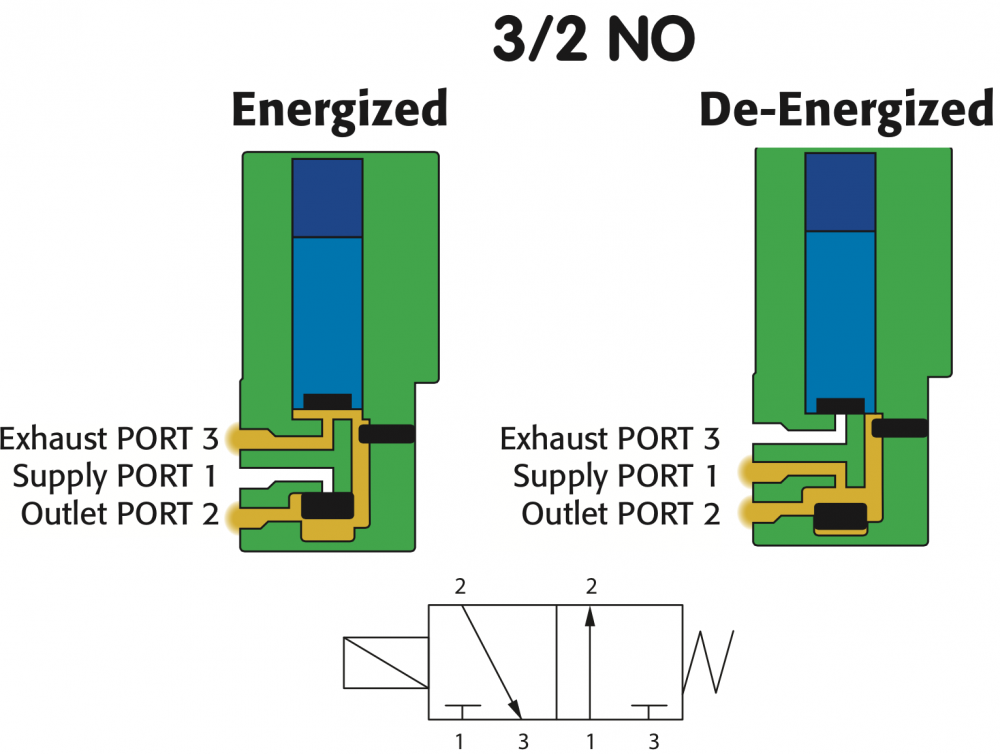

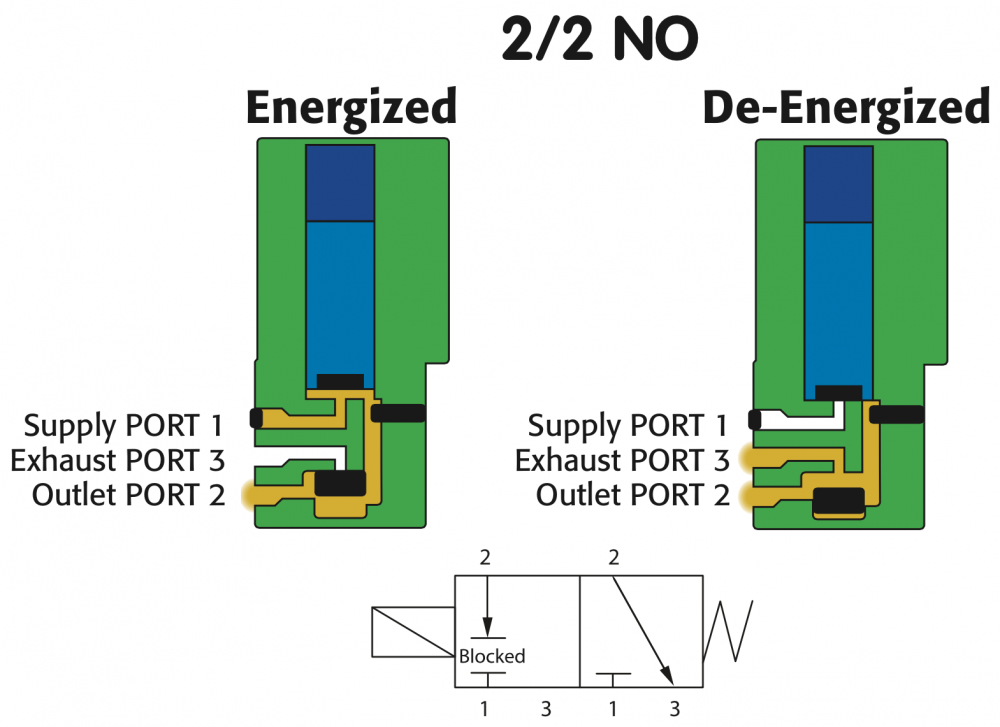

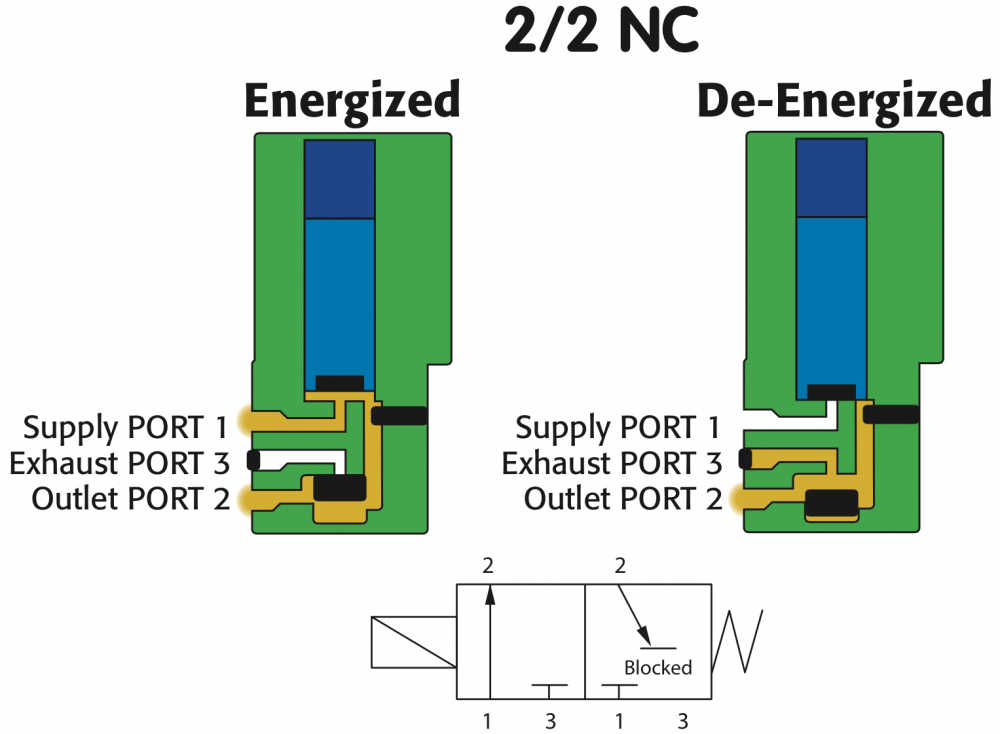

10mm SubMiniature Solenoid Valves and Flow Diagrams

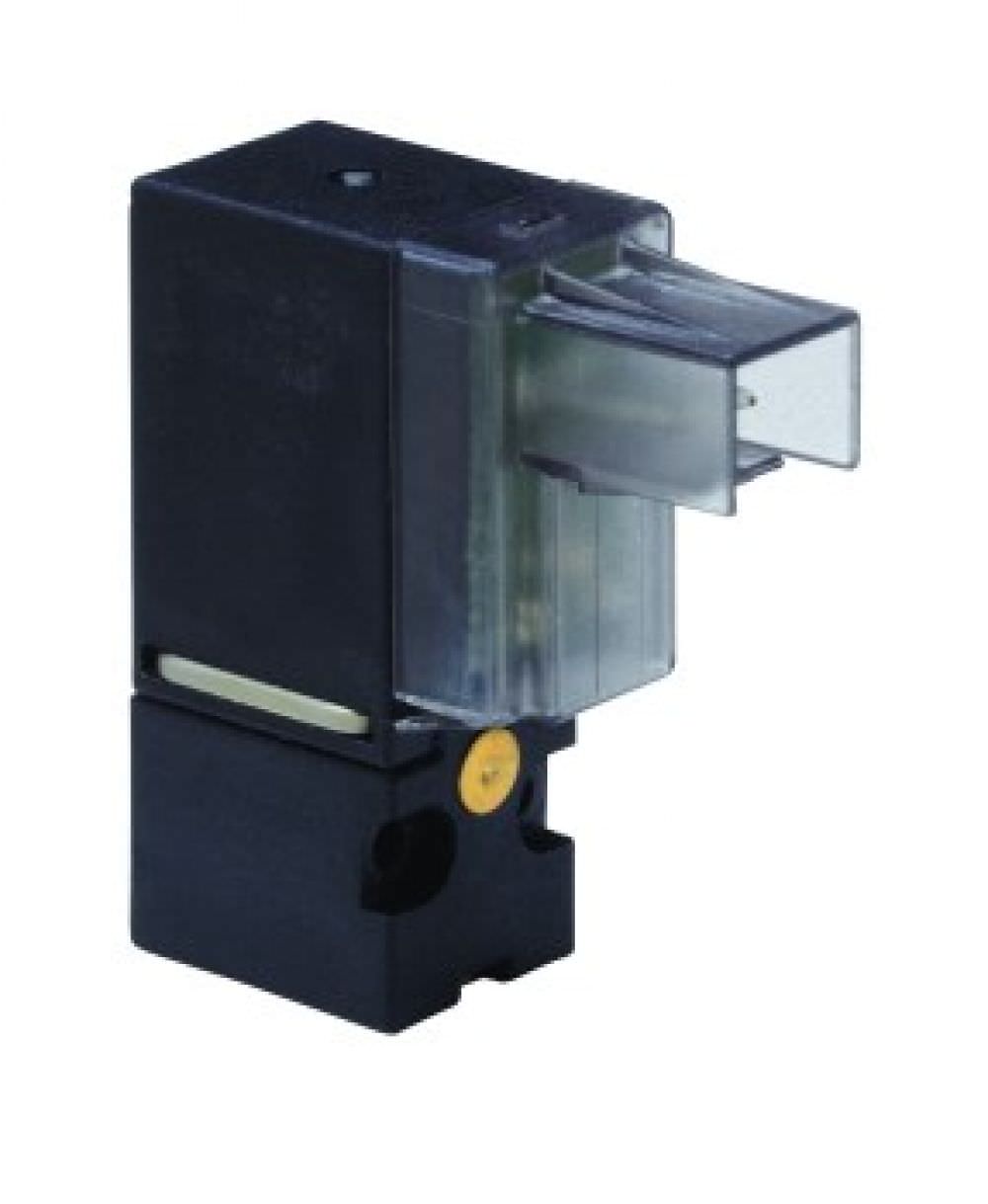

10mm Perpendicular Connection
10mm Axial Connection

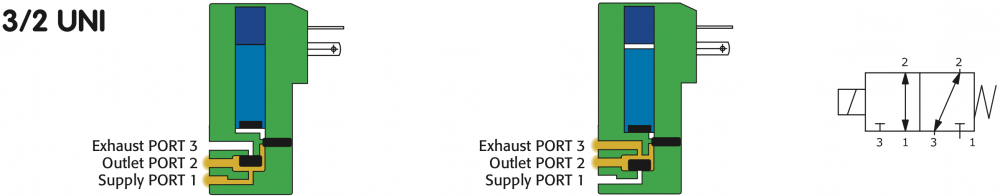

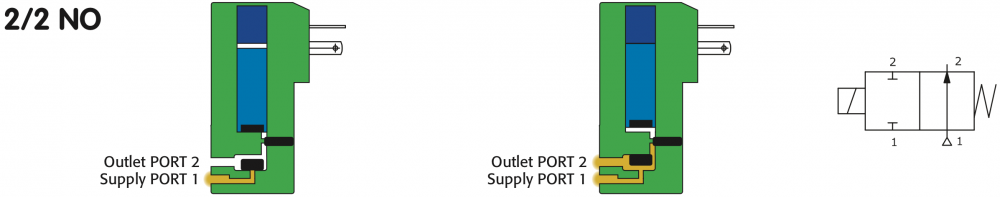

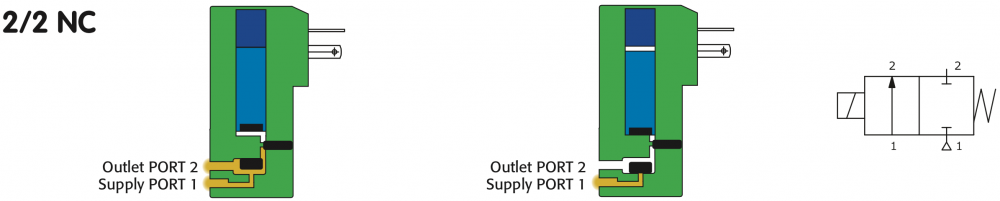

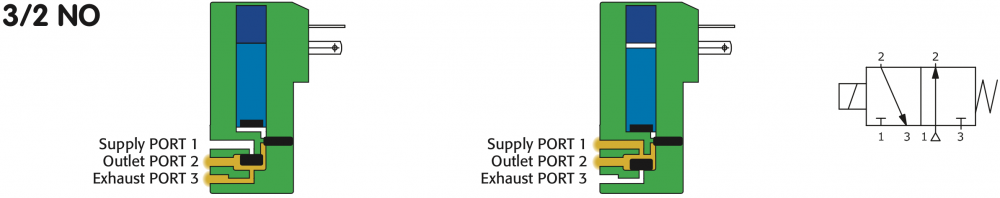

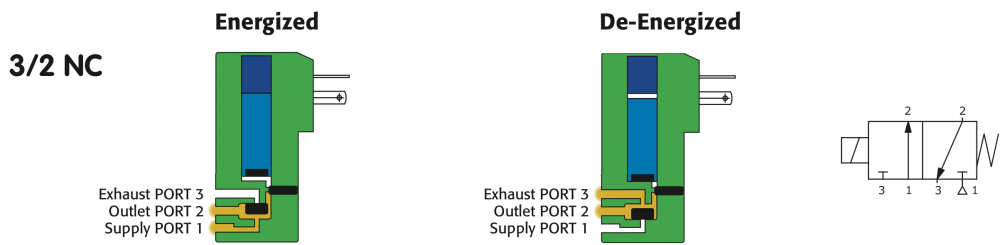

15mm SubMiniature Solenoid Valves and Flow Diagrams

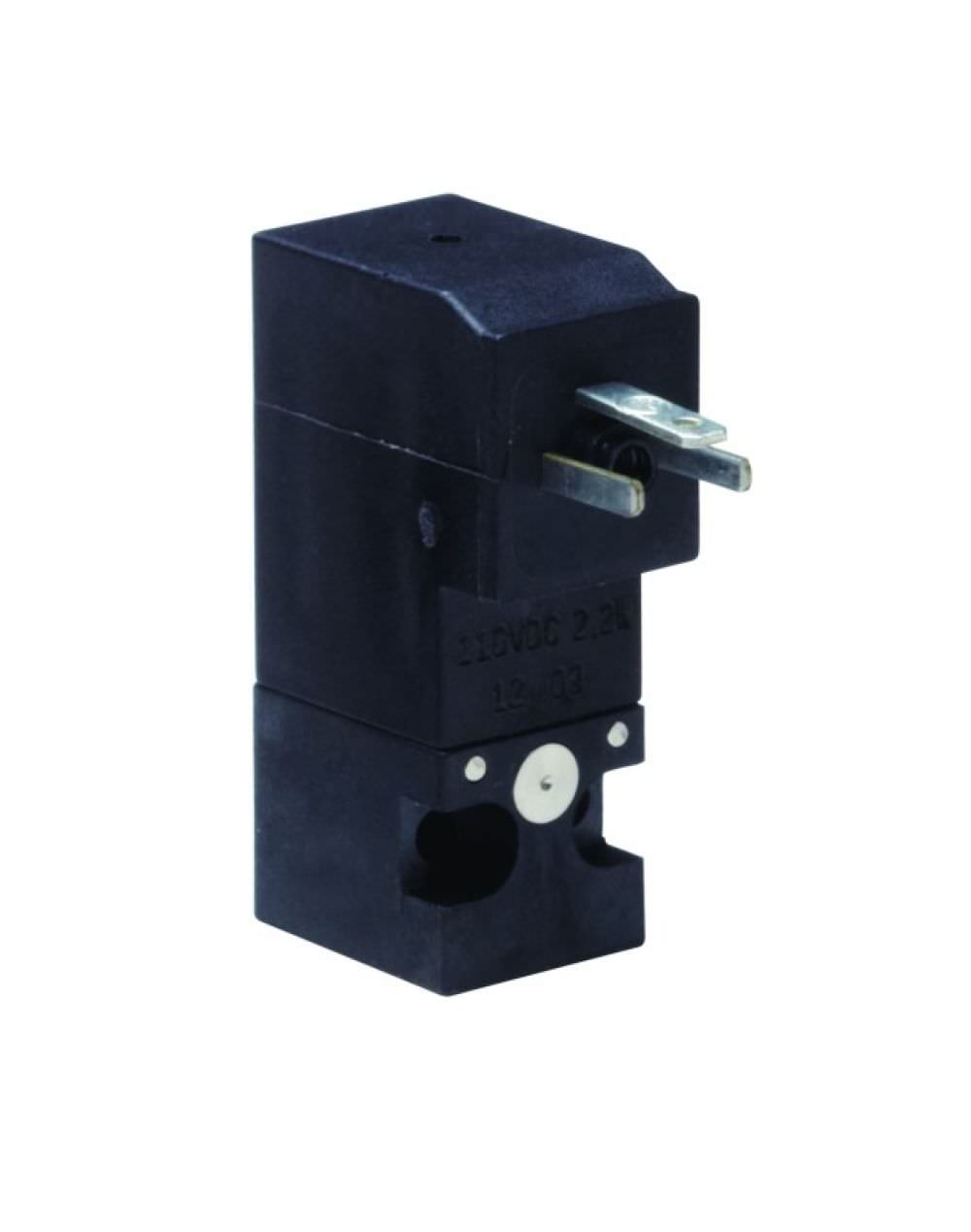

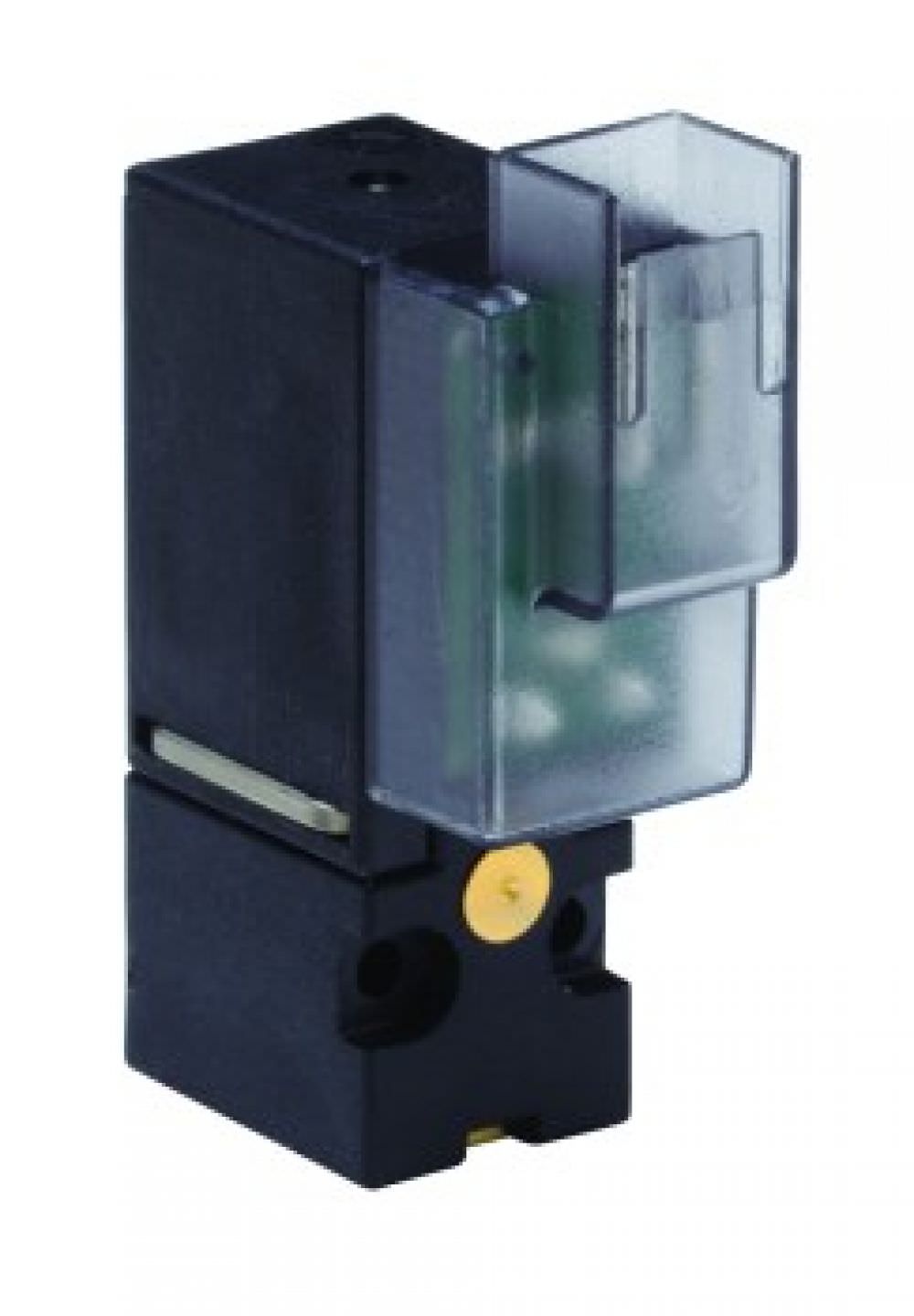

15mm Amp 2.8 x 0.5
15mm DIN C

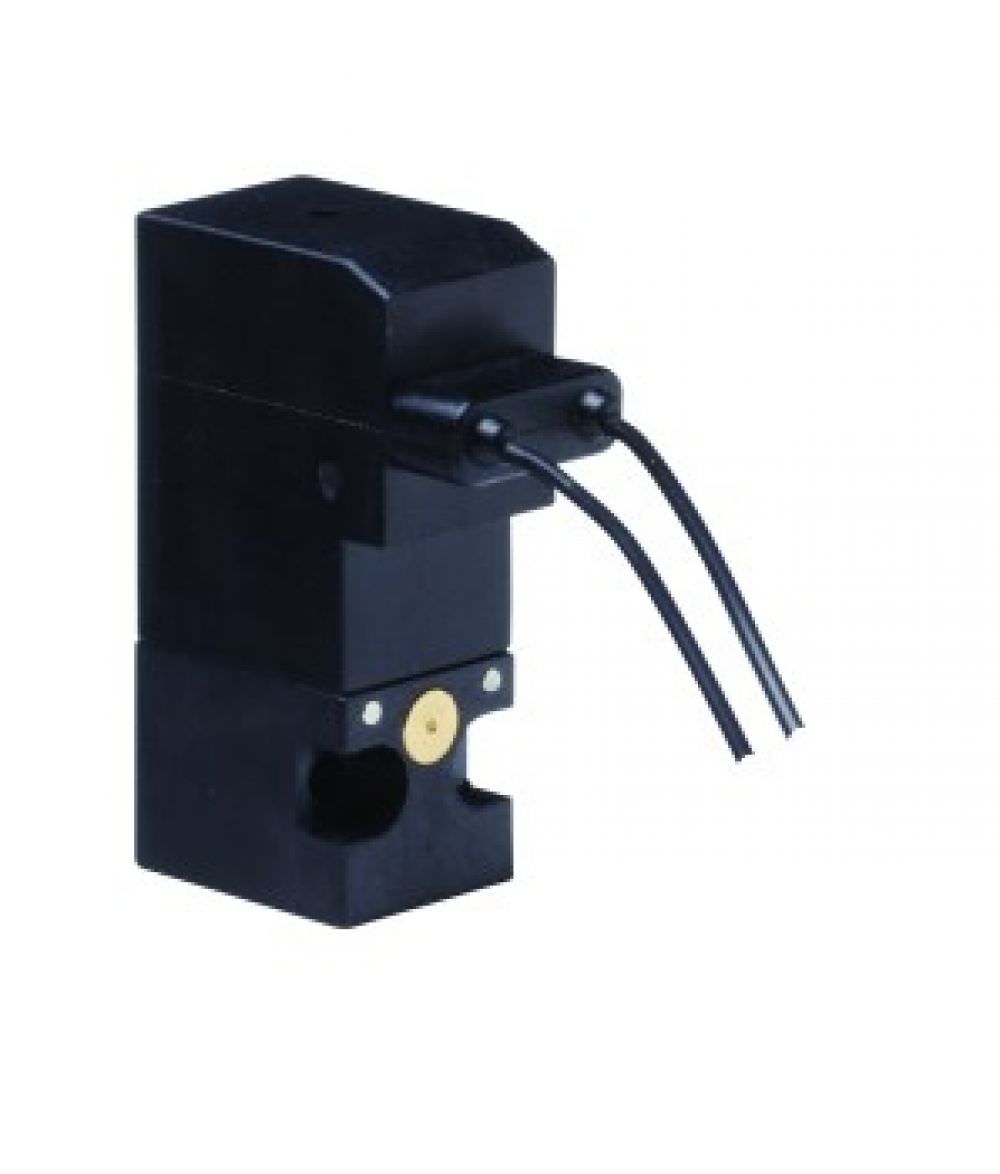

15mm Flying Leads

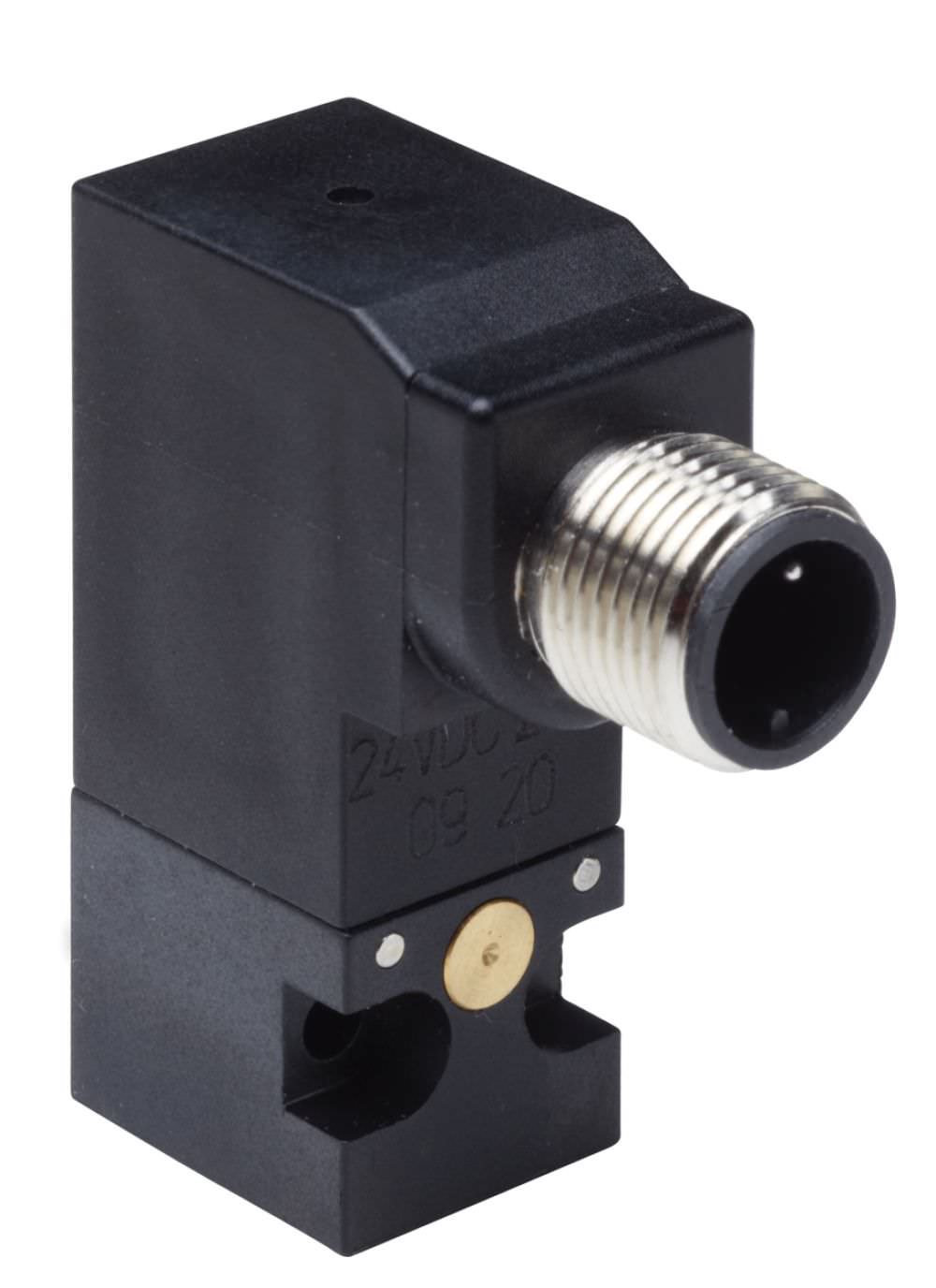

15mm M12
